HB-A5M 4G incorporates a built-in GPS positioning module along with a 2G+4G communication module. Its primary power source is the vehicle’s power supply, and the data is updated every 30 seconds as a default setting. In addition, HB-A5M 4G is featured with an 80 mAh battery, which ensures the continues working even when the vehicle’s power fails. Meanwhile, HB-A5M 4G can work with the external relay to disable the power supply or fuel pump, which is applicable for vehicle theft.
|
Function |
Parameter |
Note |
|
|
Communication
|
2G |
900MHz,1800MH |
The module varies by region or project |
|
4G |
LTE TDD:B34/B38/B39/B40/B41 |
||
|
GNSS |
Mode | GPS/BDS |
|
|
Sensitivity |
-148dBm/-162dBm | Acquisition/Tracking Sensitivity | |
|
Weight |
45g |
|
|
| Dimension | 79.5*44*15mm | ||
| Ingress Protection Ratings | IP54 | ||
| Backup Battery | 80mAh | ||
| Standby time | 30min | 10 min/ data | |
| Antennas | Built-in Antennas | GNSS&Communication Antennas | |

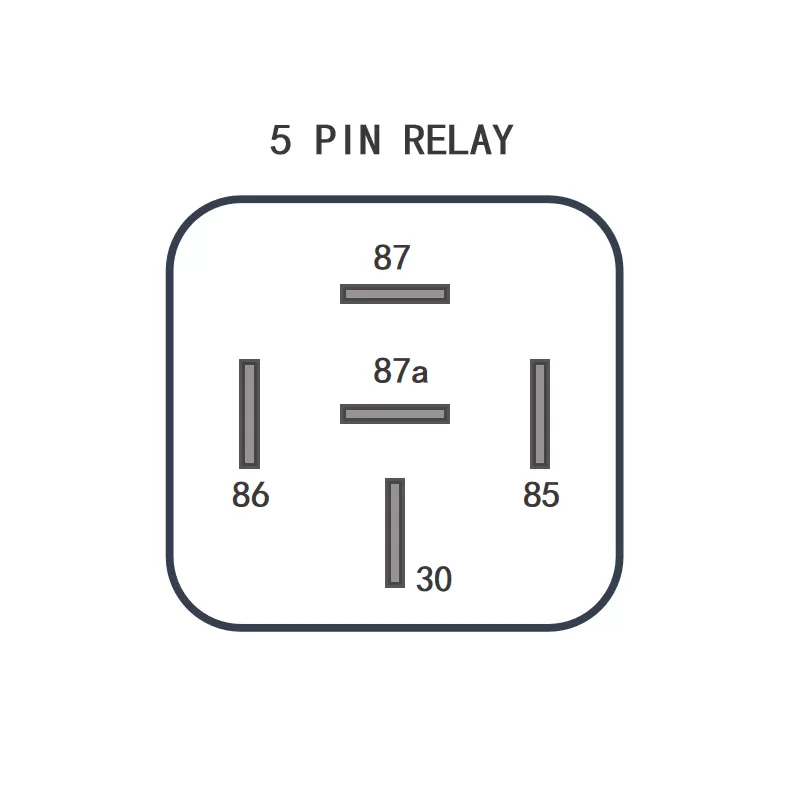

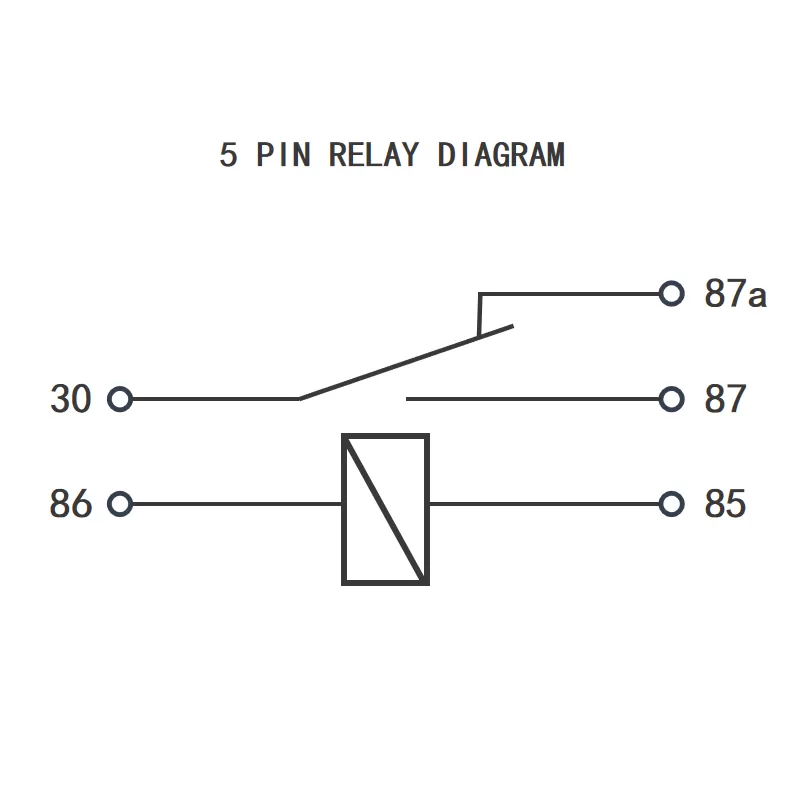

This is a basic tracker that can support an external fuel pump relay. It is an electronically operated switch that can manage the power supply of the fuel pump, which aims to improve the possibility of recovering stolen vehicles. According to different vehicles, We can provide 12V or 24V relays with 5 pins. You are welcome to contact us for more details.
To prevent signal interference, GSM/GPRS antennas should avoid entanglement with other control lines and maintain a distance of at least 50CM from wireless devices.
Our devices support a 3rd party platform. We can assist you in finishing the integration. Please contact us to get more details and the protocol.
‘Asset tracking’ is the means of monitoring the location and status of equipment and tools essential for business operations.’
Yes, we provide both Web and mobile phone APP.
