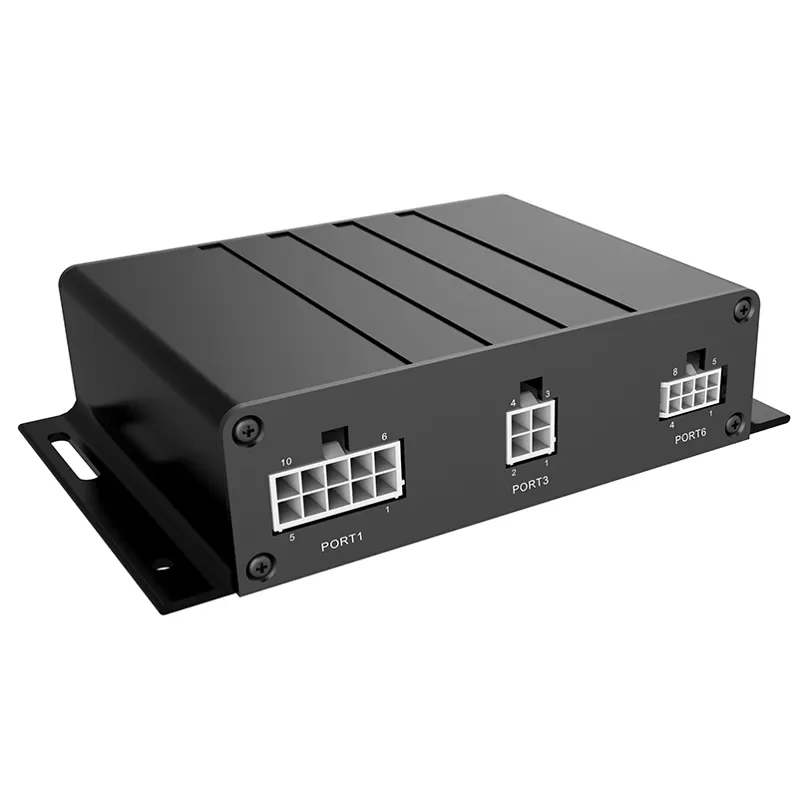

HB-SLD300 can detect the vehicle’s speed by the pulse speed line. It works as the speed limiter to limit the speed within the pre-set threshold by controlling the fuel supply or drive-by-wire. HB-SLD300 is compatible with cars, buses, and trucks and
HB-SLD300 is a device whose primary function is to control the fuel feed to the engine by relay or drive-by-wire, to limit the vehicle speed to a preset value. The device supports the use of diesel vehicles and mechanical valves. It can trigger alerts when vehicles violate speed regulations. It is easily installation for all government mandatory requested or private management purposes on different types of commercial vehicles and passenger service vehicles.
|
Function |
Parameter |
Note |
|
|
Communication |
Not Support |
No communication function |
|
|
Positioning |
Not Support |
No positioning function |
|
|
Storage |
NAND Flash 8MBit |
Record 10000 pieces of communication blind zone data. |
Storage record loop coverage. |
|
Voice |
Buzzer |
Built-in buzzer |
Supports speeding alarm. |
|
USB |
USB |
USB 2.0 |
Collect device data or perform local upgrade through U disk. |
|
Speed Limiting |
Driving Record |
5 s/data can store 72 hours of records. |
|
|
Device Log |
Record device on/off, speeding, cut pulse velocity line, cut GPS antenna. |
||
|
Speed Warning |
When the vehicle speed is close to the limit threshold, the buzzer will alarm. |
Example: Set a speed limit of 80km/h, and an alarm will be triggered when the vehicle speed reaches 75km/h. |
|
|
Judgment Method |
GPS/PulseSpeed |
Judge whether the speed limit threshold is reached by GPS speed or vehicle pulse speed. |
|
|
Configure The Parameters |
Support |
Default 80km/h |
|

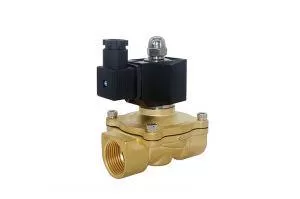

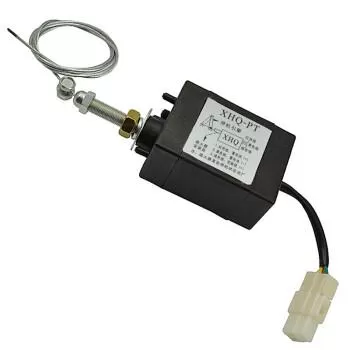

HB-SLD300 can govern the power supply of the fuel pump of the vehicles with the help of Relay. Some diesel vehicles need an external Throttle controller or a Diesel Valve. The devices can be configured before installation, but they should be processed with a serial cable and software. We also offer Controllers to simplify the installation and configuration.

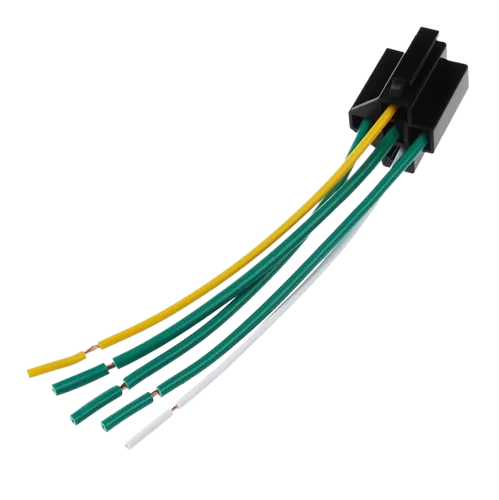

If a speed limit function is required, this device requires an external relay. They will work as fuel-cutting lines to limit the speed.
The devices should be kept away from water and not suspended. Under the premise of correctly installing the equipment, data is safe. The storage temperature is between -40 ℃ and 85 ℃. In addition, even if the device suddenly loses power, the stored data will not be lost on the device for 10 years.
Sure, our solutions are trusted by our customers, and the vehicle’s speed limit is achieved through continuous and precise control of the fuel supply. This ensures that the vehicle operates within safe parameters at all times, minimizing the risk of accidents and ensuring passenger and asset safety.
We provide different speed-limiting solutions for different vehicles and models. Please contact us to confirm the corresponding solutions.
