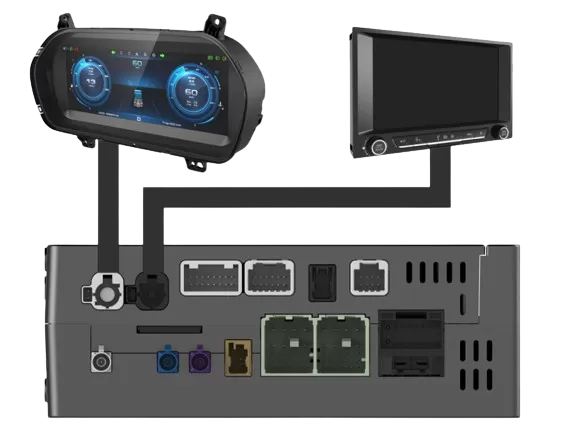

HiBox is a center console based on the automotive bus system and telematics technology. HBOIOT provides IVI systems for automobile OEMs, including the Cockpit Domain Controller, the LCD Instrument Cluster, and the Center Console Screen. As one of the core components of IVI systems and the vehicles’ cockpit, this intelligent terminal can provide functions such as tracking, navigation, cockpit domain control, in-vehicle entertainment information display, vehicle diagnosis, wireless communication, etc.
|
Function |
Parameter |
Note |
|
| Communication | Cellular | 2G/3G/4G | |
| GNSS | Module | GPS/BDS | |
| Accuracy | <2.5m(CEP50) | ||
| Hardware Specification | Working Voltage | 18V-32V | |
| Working Current | 5A(Full Power Amplifier) | ||
| Dimension | 282mm×174mm×70mm | ||
| Waterproof Level | IP54 | ||
| Weight | 1850g | ||
| Multimedia Monitor | Operation System | Android 7.1 | |
| WIFI( STA、AP、P2P)、BT + EDR | Support | ||
| Display Size | 10.1 Inches | ||
| Scale and Resolution | 1024*600P | ||
| Physical Buttons | Support | ||
| Noise Reduction Solution | Support Dual Microphones | ||
| Video Signal Input | 4*ch | ||
| CAN | 2*ch | ||
| UDS | Support | ||
| Amplifier | 4*ch（25W） | ||
| Music Format | MP3、aacPlus、eAAc、AMR-NB、AMR-WB、 G711、WMA | ||
| Video Format | ASF、WMV、AVI、DIVX*、TS、MKV、WEBM、3GP、MP4、FLV | ||
| Image Format | BMP、JPG、PNG、GIF | ||
| Interface resource | Radio Antenna | External Antenna | |
| Communication Antenna | External Antenna | ||
| Positioning Antenna | External Antenna | ||
We mainly offer full-featured screens with an Automotive Infotainment System for heavy trucks and devices with a size of 10.1 inches are available currently. If you have any other requirements, please feel free to contact us.
We possess robust software development skills and extensive experience in development. Our development procedures adhere to the Capability Maturity Model, and our technical team is capable of tailoring the software to meet your needs.
We have ISO9001:2015, ISO14001:2015, ISO45001:2018, IATF16949:2016, CMMI3.
Yes, we can provide driving data recorders and speed limiters with positioning and communication modules. They can support uploading location data, photos, and sound to the platform, ensuring data security and improving management and monitoring efficiency.
