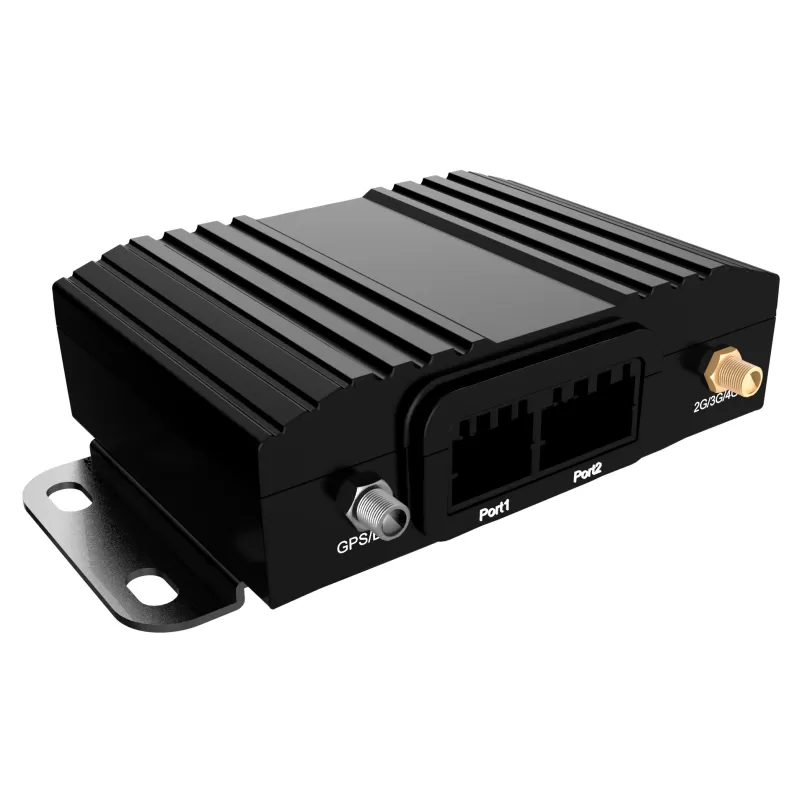

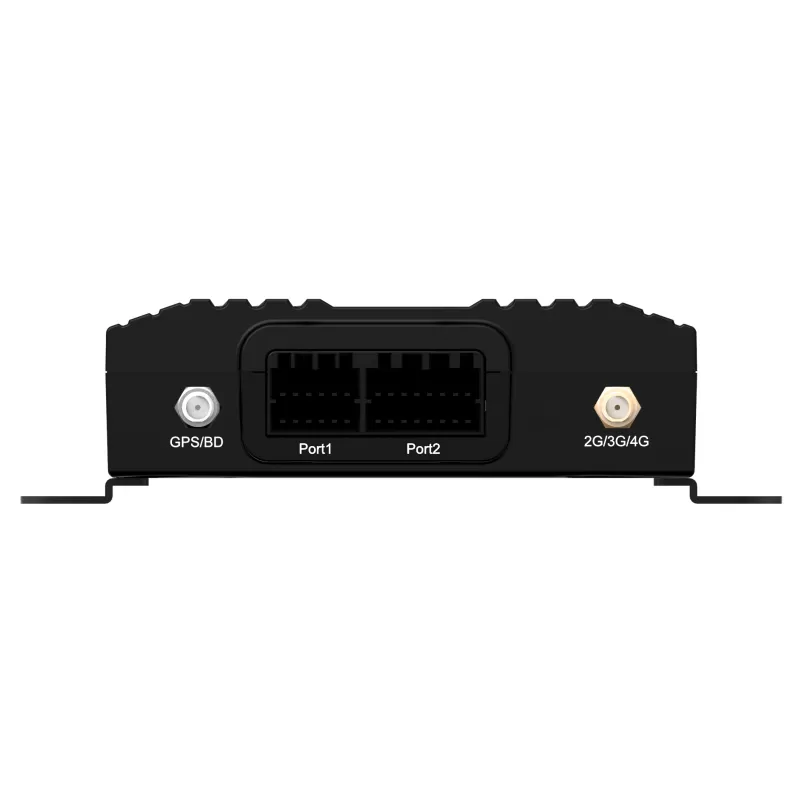

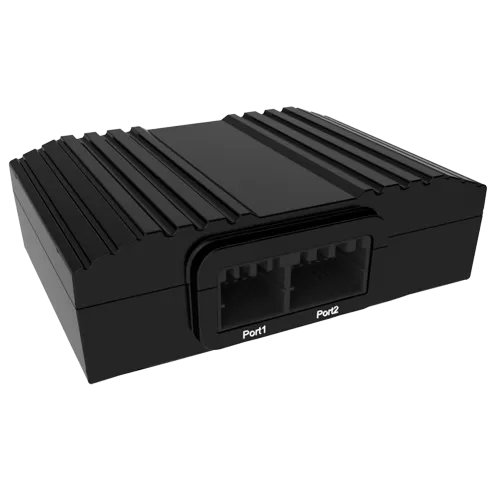

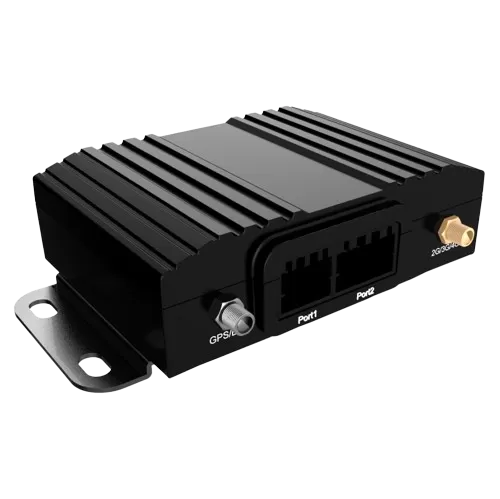

HB-A9S is a high-end 4G GPS tracker specifically designed for public transportation and logistics companies. Its rich interfaces can be easily integrated with other systems and devices, expanding its functionality and enabling a wide array of customization based on specific project requirements.
HB-A9S is a powerful tracker with a built-in WIFI module, which can convert 4G signals into WIFI signals, allowing passengers to connect to the internet while on board. We provide various versions for options like the version that supports dual SIM cards, 2G,3G, and 4G networks, the version with an external antenna or an internal antenna as well as the version which is with the Bluetooth module. HB-A9s has nich interfaces to serve as a whole solution for feet management such as a 1-Wire interface, two
CAN-BUS interfaces, two RS232 interfaces, and an RS485 interface.
|
Function |
Parameter |
Note |
||
|
Communication |
Cellular |
2G/3G/4G |
The module varies by region or project |
|
|
WIFI |
802.11 b/g/n WLAN |
Provide internet service via SIM card 4G network. |
||
|
Bluetooth version |
BT 4.2Connect |
|
||
|
Data Support |
SMS (text/data) |
|
||
|
GNSS |
Mode | GPS/BDS |
|
|
|
Receiver |
Tracking: 64 acquisition channels | |||
|
Weight |
210g |
|
||
| Dimension | 114 * 82 * 34mm | |||
| Ingress Protection Ratings | IP54 | |||
| Backup Battery | 400mAh | |||
| Antennas | External/Built-in Antennas | |||
HB-A9S is suitable for a wide range of vehicle management applications. It has a wide range of interfaces, including digital outputs, analog inputs, audio outputs, etc. It’s also an integration of CANBUS, RSB232,1-wire technology.
‘Asset tracking’ is the means of monitoring the location and status of equipment and tools essential for business operations.’
Yes, we provide both Web and mobile phone APP.
We provide different speed-limiting solutions for different vehicles and models. Please contact us to confirm the corresponding solutions.
The device can read the vehicle’s speed through the pulse speed line, and identify the vehicle’s speed accurately. Then it will control the speed through a relay or pedal controller to prevent the speed from exceeding the threshold.
