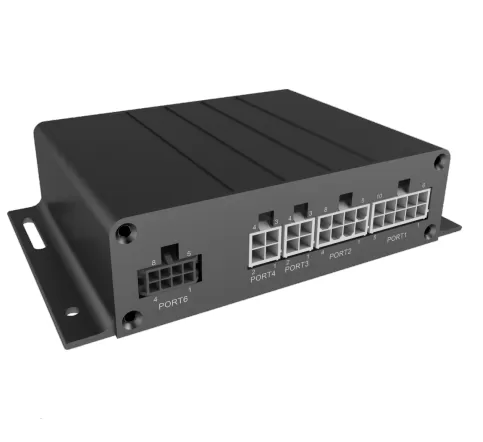

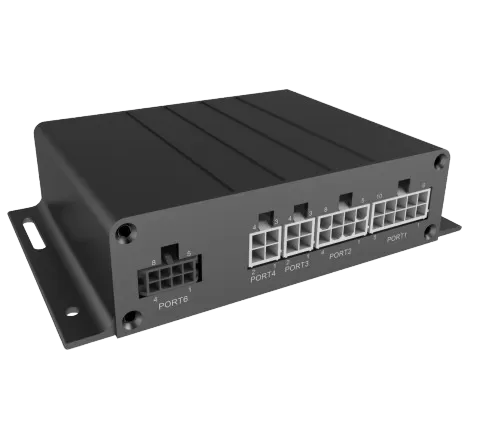

HB-A3B is a GPS tracker with an external antenna, strong scalability, and rich interfaces. It can support multiple accessories simultaneously and provide different solutions according to different scenarios, such as fleet management, fuel management, cold chain transportation, driver identity recognition, and solutions to monitor reckless driving, fatigue driving alarms, and other driving behaviors.
HB-A3B is a feature-rich GPS tracker designed specifically for finance, police, firefighting, construction, post offices, freight, emergency, and public transport solutions. Many interfaces are reserved for various accessories, expanding the device’s functions such as driver identity recognition, alcohol detection, emergency alarm, temperature and humidity detection, and fuel level detection. It can connect to an external printer and support OTA firmware updates.
|
Function |
Parameter |
Note |
|
Communication |
2G&4G |
The module varies by region or project |
| Mode | GPS/BDS |
|
|
NAND Flash 8MBit |
Record 10000 pieces of communication blind zone data. |
Storage record loop coverage. |
|
Buzzer |
Built-in buzzer |
Supports speeding alarm. |
|
Weight |
300g |
|
| Dimension | 130 mm x 85 mm x 30 mm | |

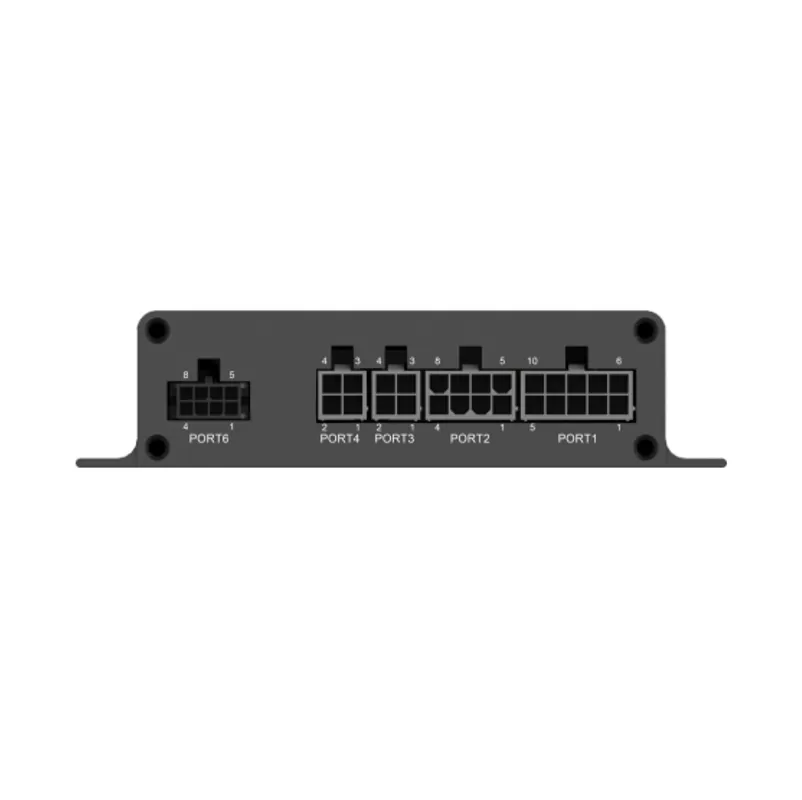

| Interfaces | 6 for digital input&output,3*AD input,1*CAN bus | |
| Backup Battery | 400mAh | |
| Relay | An internal relay 12V/24v | Speed limiting |

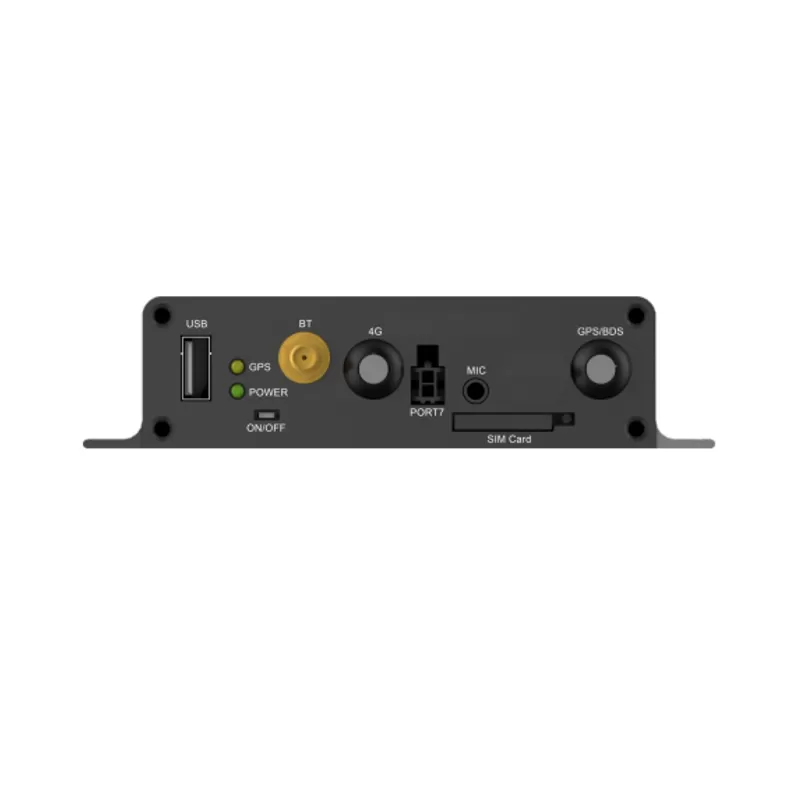

| Antennas | External Antennas | GNSS&Communication Antennas |
HB-A3B trackers can support regular accessories such as a panic button, a mobile printer, an external relay, a speaker or microphone, and a controller. Tailored for the projects, we can provide sensors like the capacitive fuel level sensor, container door sensor, and rotation or temperature sensor.
If a speed limit function is required, this device requires an external relay. They will work as fuel-cutting lines to limit the speed.
‘Asset tracking’ is the means of monitoring the location and status of equipment and tools essential for business operations.’
Yes, we provide both Web and mobile phone APP.
We provide different speed-limiting solutions for different vehicles and models. Please contact us to confirm the corresponding solutions.
