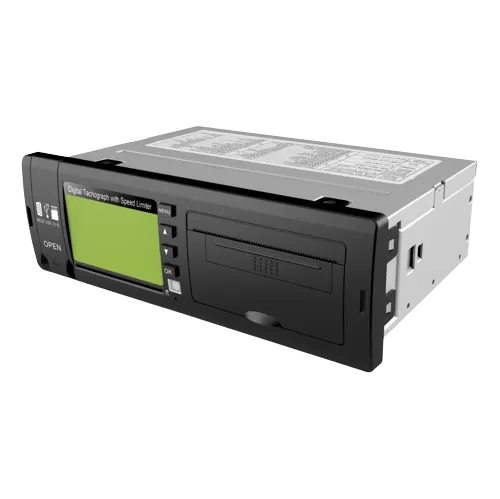

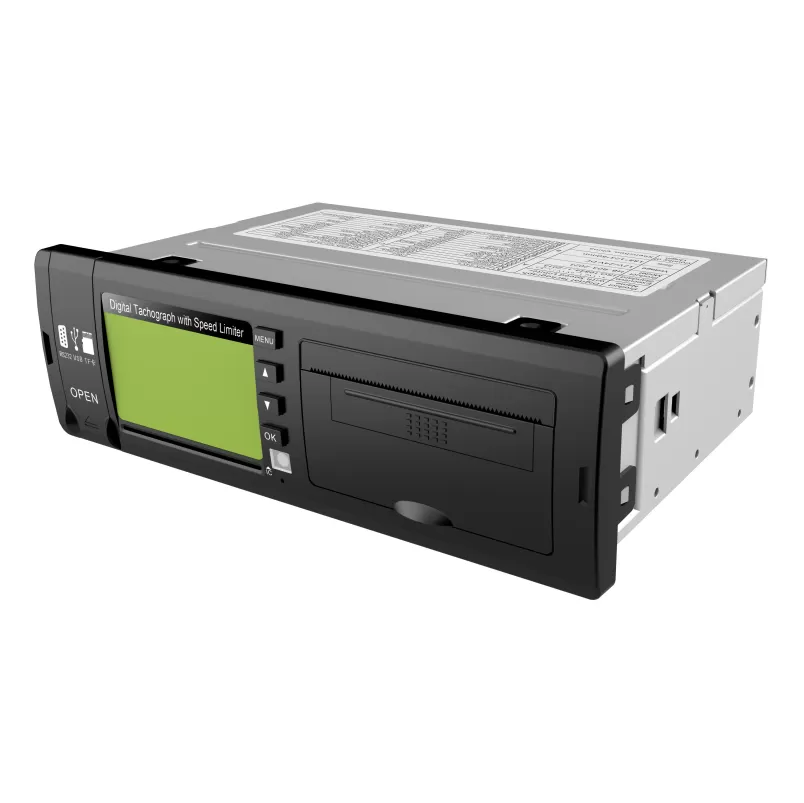

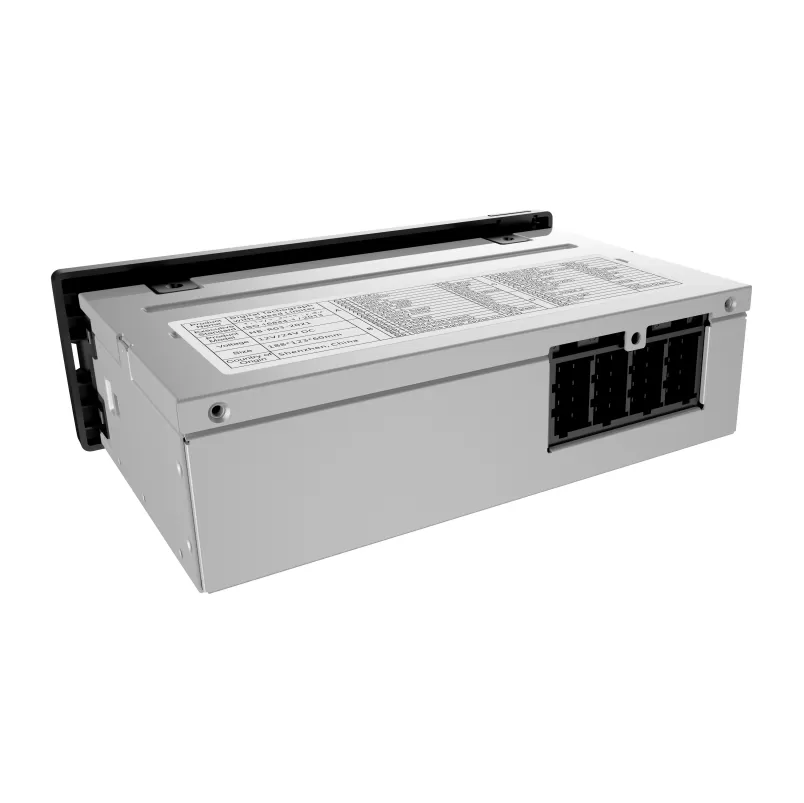

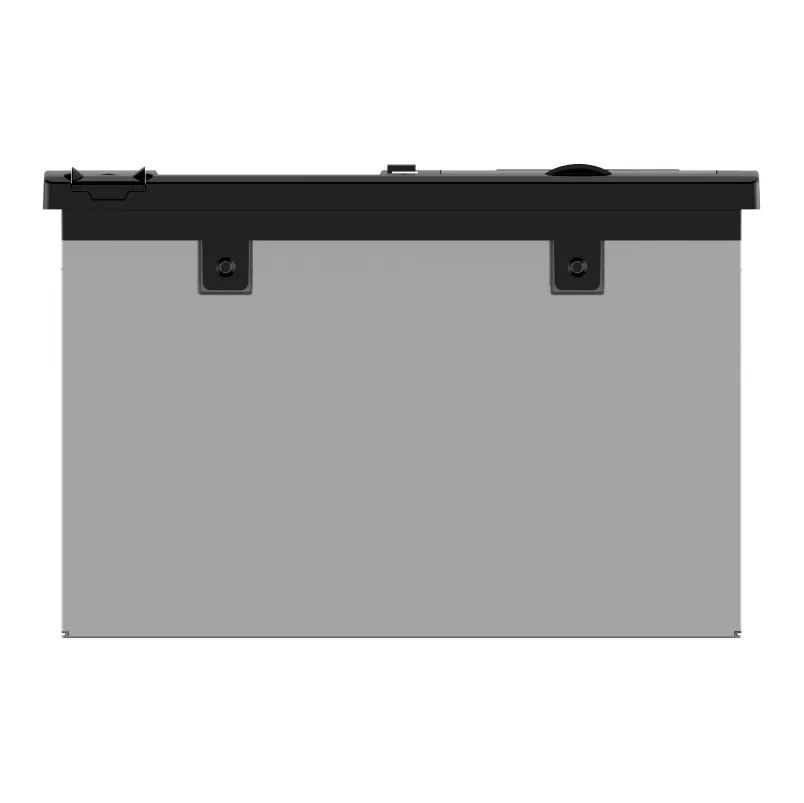

HB-R03 is a vehicle digital tachograph with printer and display. Its main features include recording driving time, speed, and distance, driver ID, and fatigue drive detection. It helps ensure compliance with regulations and monitor driver activity for safety and accountability. We also provide models with GPS tracking features and they can locate, record, and upload driving and accident data to the server.
HB-R03 00
HB-R03 2G
HB-R03 2/3/4G
The Tachograph HB-R03 is a vehicle driving recorder that incorporates advanced MCUs. It draws on years of experience in the automotive electronics industry and our extensive dedication. Tachographs HB-R03 without GNSS and Communication modules can restrict vehicle speed and reliably record driving data, speed, driver and vehicle details, and driving habits. Data is output through a built-in printer and USB interface. Models equipped with GPS and GPRS modules can gather longitude, latitude, time, speed, direction, satellite usage, and other data, transmitting the processed information to a monitoring center. Our product enables the management department to monitor and manage vehicles in real-time remotely using a website connected to GIS electronic maps or dispatch monitoring software.
|
Function |
Parameter |
Note |
|
|
Communication |
Cellular Network | No support/2G/3G/4G |
Optional |
|
GNSS |
Module | No support/GPS and BDS |
Optional |
|

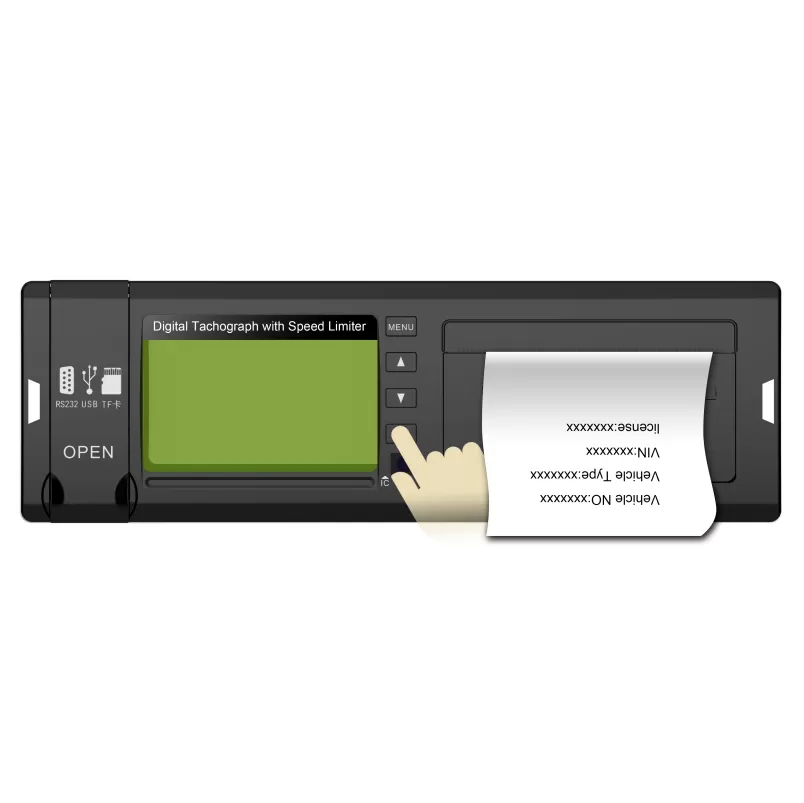

Internal Printer |
Print Content | Plate NO./Driver license NO./Speed status/Printing time/Over-time driving record within 2 days |
|
| Display |
Size |
2.3 inches |
Display |
| Driver ID |
Driver ID card |
IC Card |
Record driver information, driving license No., driver’s name, etc. |
|
Hardware
|
Voltage | 9-36V | |
| Current | 100mA | ||
| Working Temperature | -30℃~+70℃ | ||
| Storage Temperature | -40℃~+85℃ | ||
|
Dimension |
188mm * 136mm * 61mm | ||
| Device weight | 650g | ||

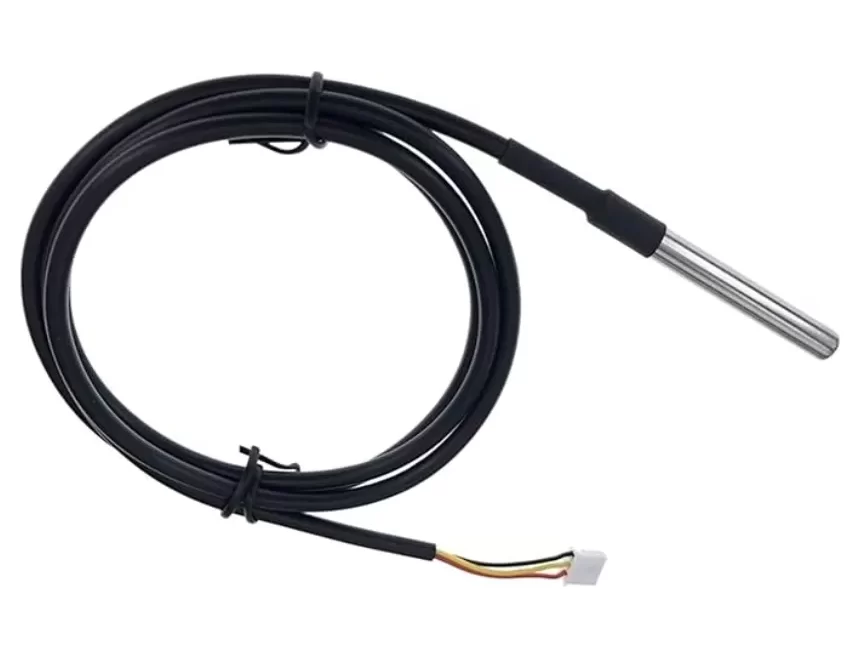

HB-R03 can detect driving speed from the Pulse Speed Line, and it needs an external relay to control the vehicle’s power. Control handles can be implemented to enhance user efficiency and convenience in operating the device. To fulfill the specific needs of the project, we can offer a camera for taking photos, a fuel sensor for preventing theft and monitoring consumption, a door sensor, and a temperature sensor for overseeing transportation.

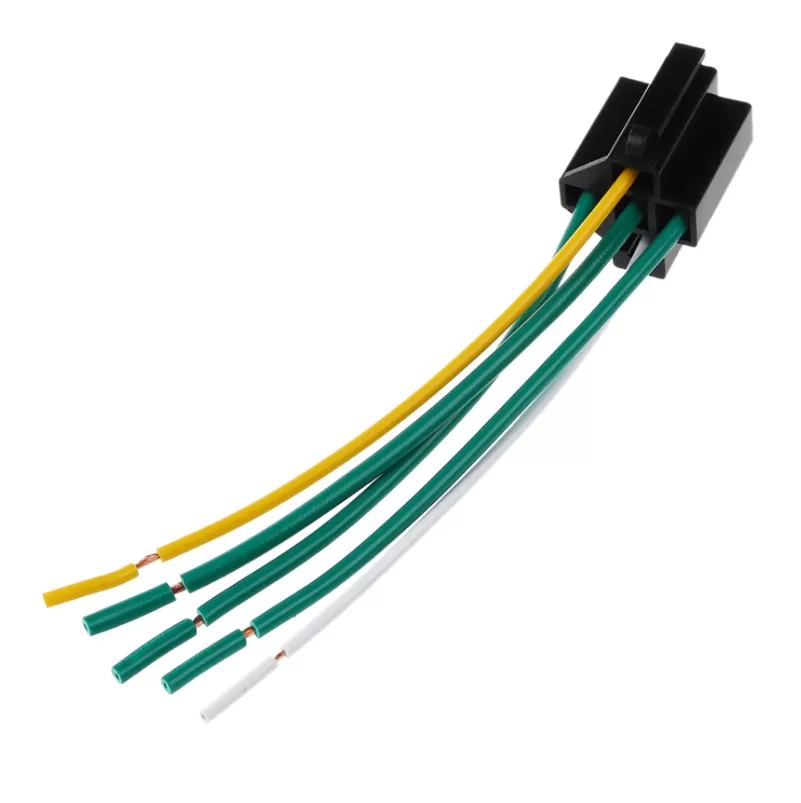

If a speed limit function is required, this device requires an external relay. They will work as fuel-cutting lines to limit the speed.
The devices should be kept away from water and not suspended. Under the premise of correctly installing the equipment, data is safe. The storage temperature is between -40 ℃ and 85 ℃. In addition, even if the device suddenly loses power, the stored data will not be lost on the device for 10 years.
Yes, we can provide driving data recorders and speed limiters with positioning and communication modules. They can support uploading location data, photos, and sound to the platform, ensuring data security and improving management and monitoring efficiency.
It is suitable for all commercial vehicles such as trucks, buses, and vehicles to transport dangerous goods.
