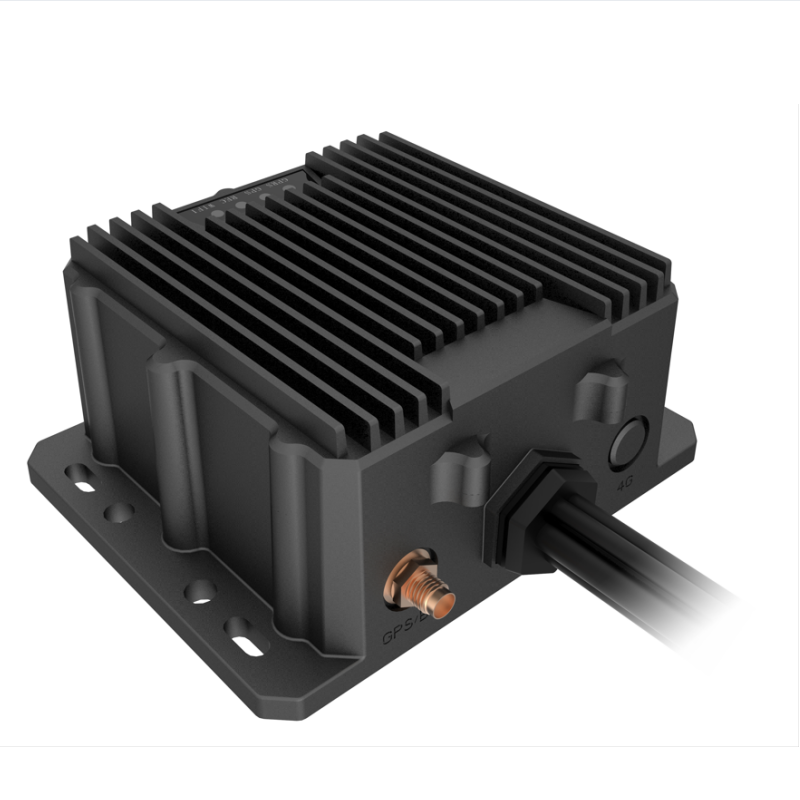

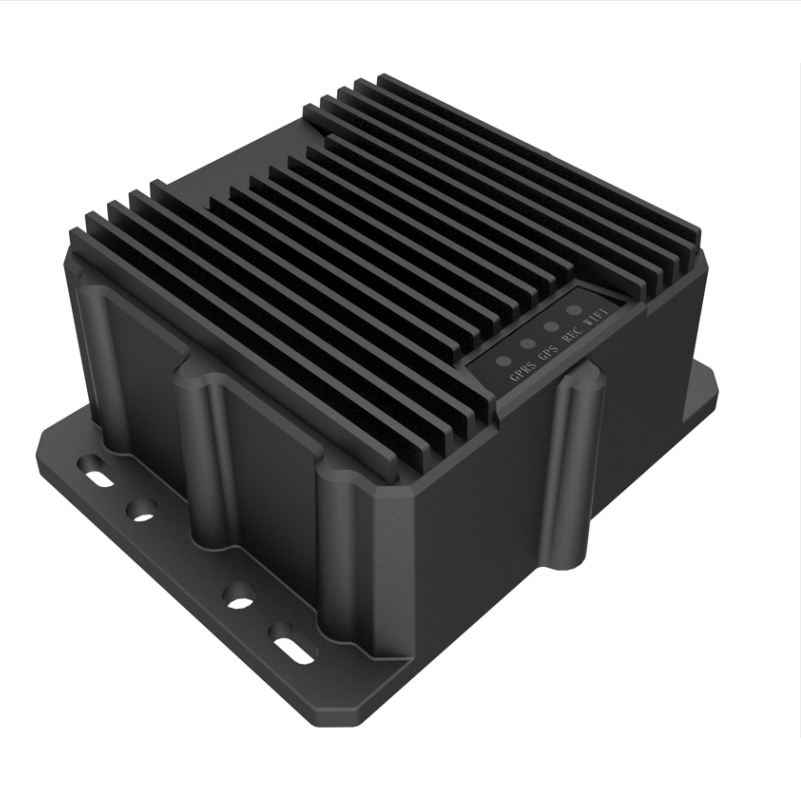

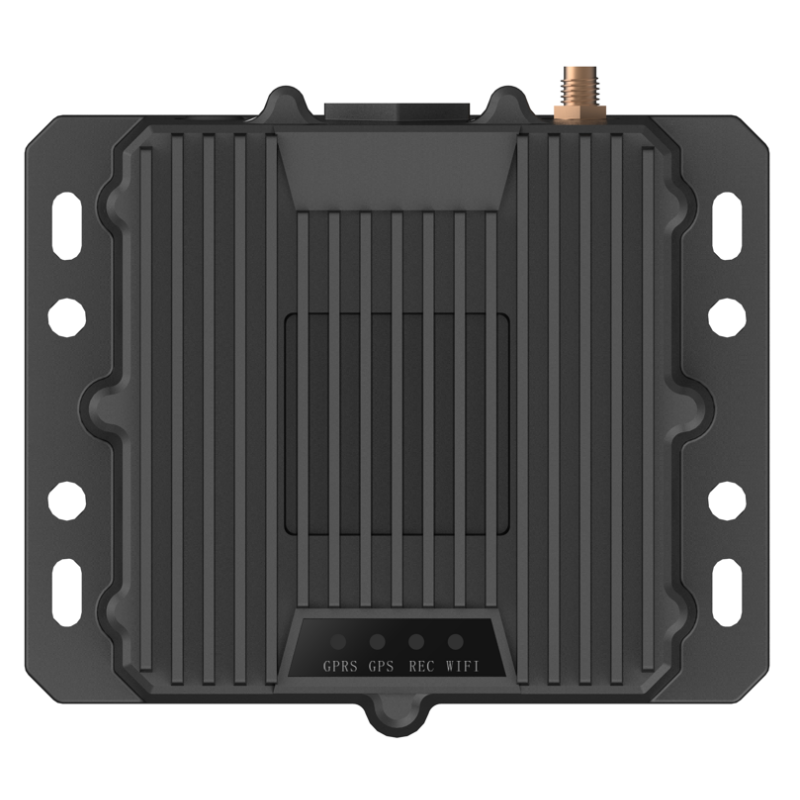

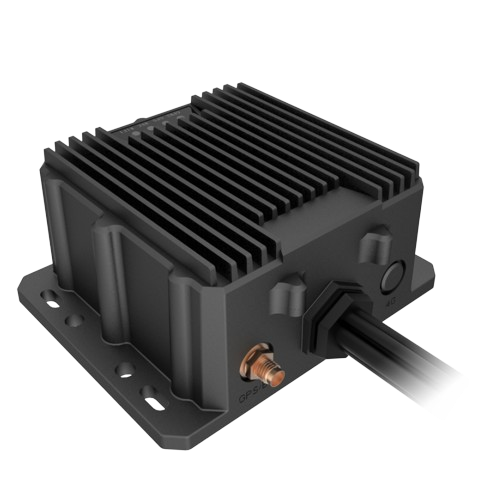

HB-VT08 supports 4 channels of video signal input with a resolution of up to 720P. It provides a video telematics solution to capture crucial information such as location, speed, acceleration, braking, driving behavior, and driver status. The artificial intelligence system analyzes driving behavior in real-time and provides audio alerts to drivers when they engage in unsafe actions like speeding or swerving and reports to the monitoring center.
Video telematics solution with cutting-edge technology, with the functions of real-time positioning, driving behavior warning, road and driver behavior recording, and driving habit analyzing. The device has a built-in battery that can continue to work for a certain time after the car is turned off. It is also an active safety system with a GPS module, a built-in G-sensor, and AI algorithms combined with external cameras, all data can be sent by the communication module to the designated servers and generate reports with the help of our platform.
|
Function |
Parameter |
Note |
|
| Hardware | Dimensions | 100 x114 x44.5mm (L x W x H) | |
| Weight | 400g | ||
| Ingress Protection Rating | IP65 | ||
| Power | Input Voltage Range | 9 – 36 V DC with overvoltage protection | |
| Working Current | 800mA | ||
| Dormant Working Current | 60mA | ||
| Communication | Cellular Network | 4G LTE(Cat4)/3G/2G | |
| WIFI | WIFI 2.4G | ||
| GNSS | Module | GPS/Beidou | |
| Camera | Front Camera | 1280*720/30fps/f2.2/Full Color | ADAS |
| Sub Camera |
1280*720/30fps/f2.0/Full Color |
DMS | |
| AHD3 | 1280*720/15FPS/F2.0/Full Color | ||
| AHD4 | 1280*720/15FPS/F2.0/Full Color | ||
|
Video Format |
H.264 | ||
| Storage |
Storage Capacity |
256G/ 512GB | |
|
Playback |
Support | PC software (Web /APP) | |

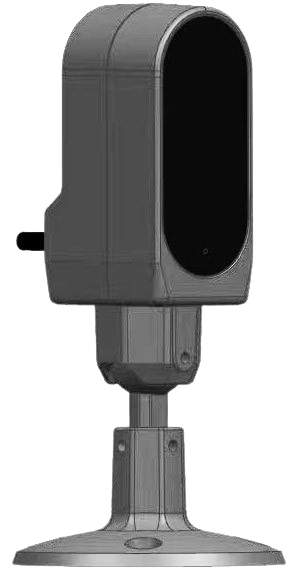

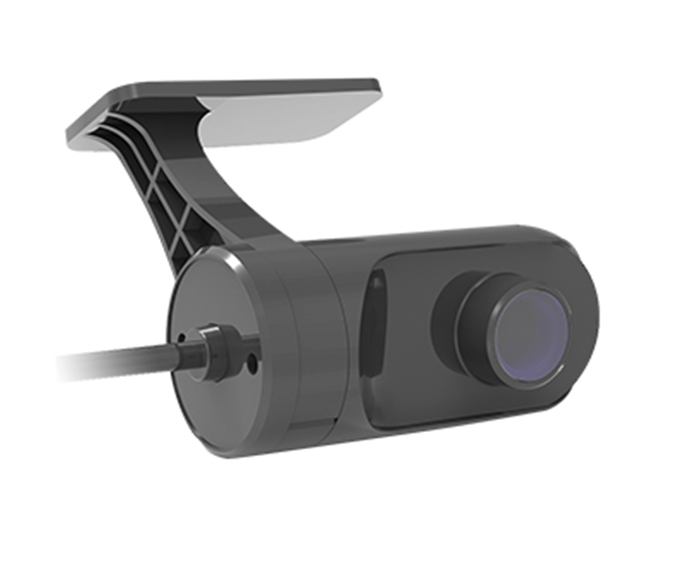

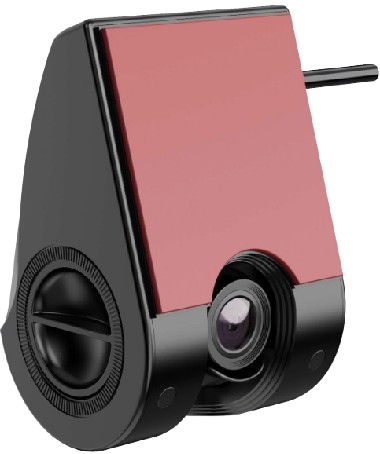

On account of the requirements for camera angles, we provide cameras specifically designed for ADAS and DMS functions. If these functions are not needed, 4 regular AHD cameras can also be used with HB-VT08.
Truck, Fire Engine, Bus, School Bus, Taxi, Semi-Trailer, Box Truck, RV, etc.
It depends on your budget, their prices do depend on whether they are smart cameras, the resolution and frequency of recorded videos, storage space, the number of cameras, etc., but the most important thing is the safety and peace of mind it can bring you while driving. Please feel free to contact us anytime, and we will based on your project needs and requirements, provide professional advise.
HBOIOT dashcam is a camera mounted on the vehicle’s dashboard or windshield that continuously records the view of the road, traffic, and more.
HBOIOT Dashcam can bring safety and peace of mind in complex road conditions.
-Evidence in Accidents.
-Fleet operation monitoring.
-Insurance Claims.
-Monitoring Driver Behaviour.
-Parking Security.
Loop recording: The Device works on the functionality called FIFO which is First in First Out, Thus the recordings which were saved first will get auto deleted and new recordings will take their place.
