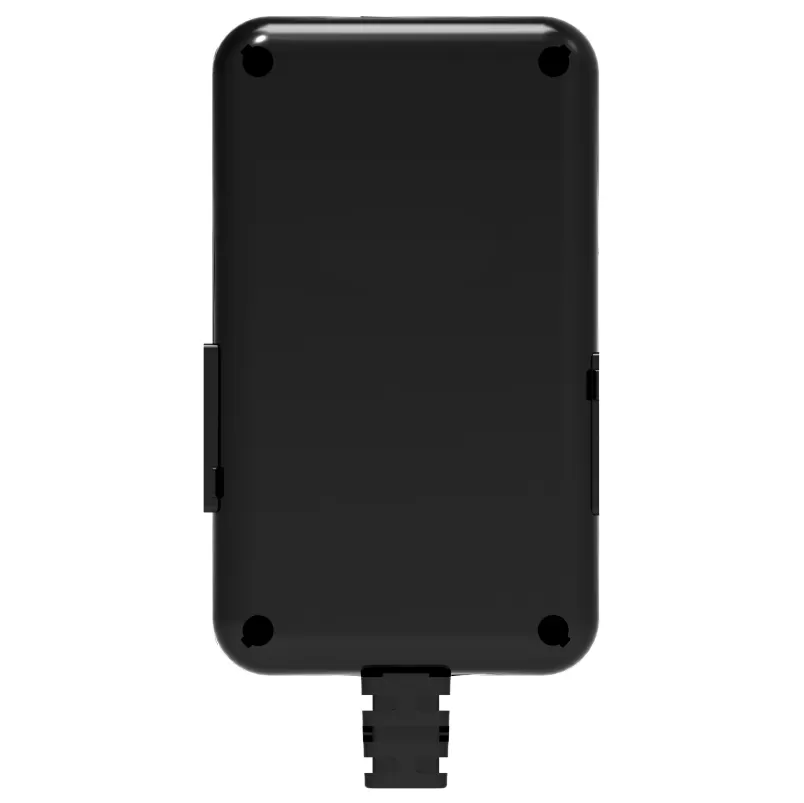

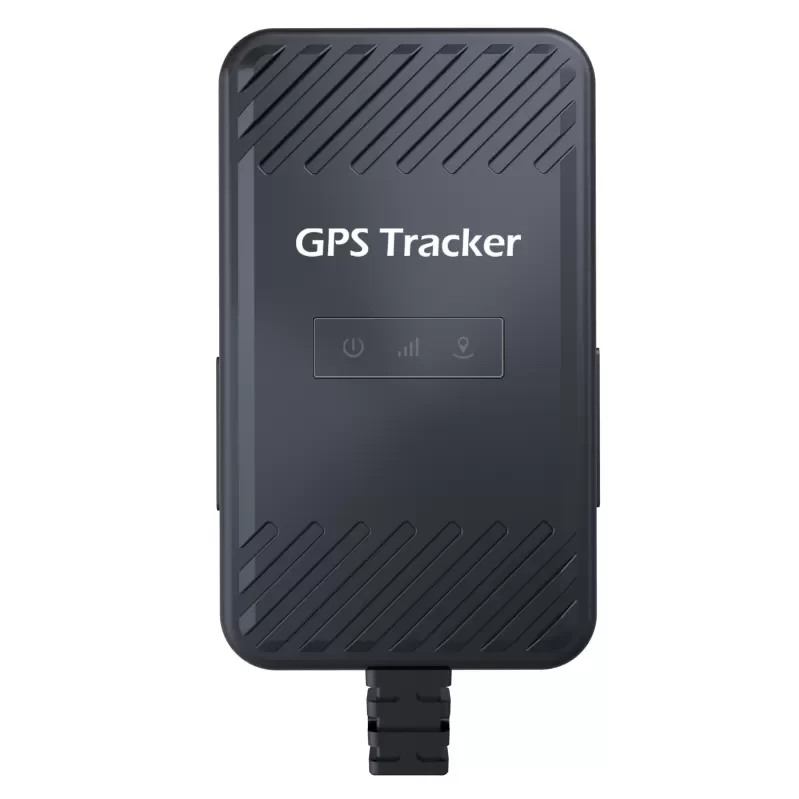

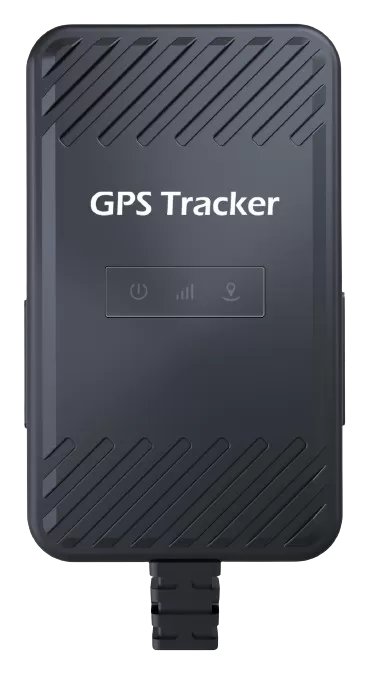

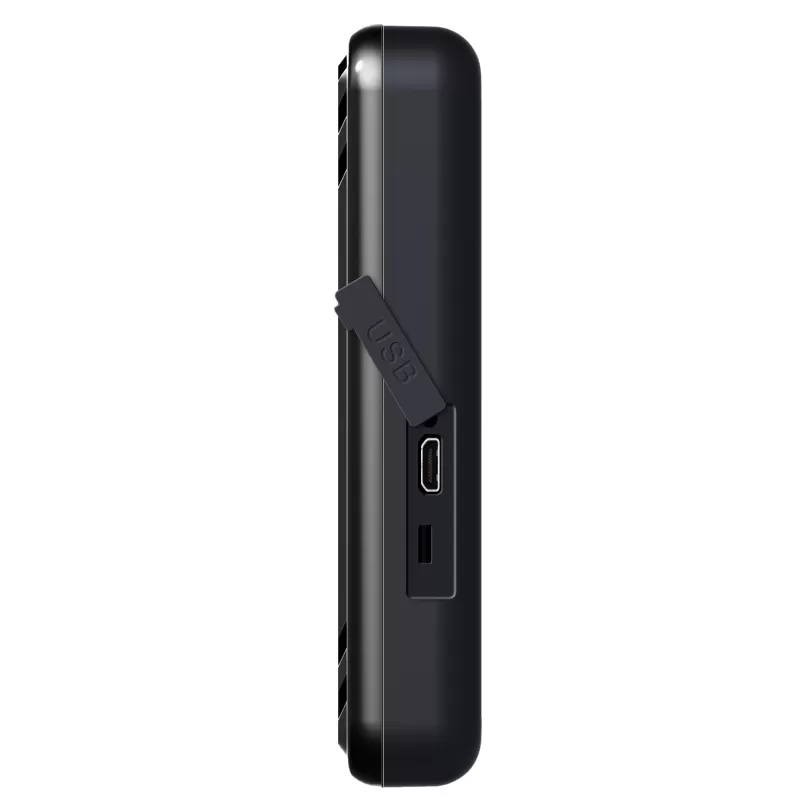

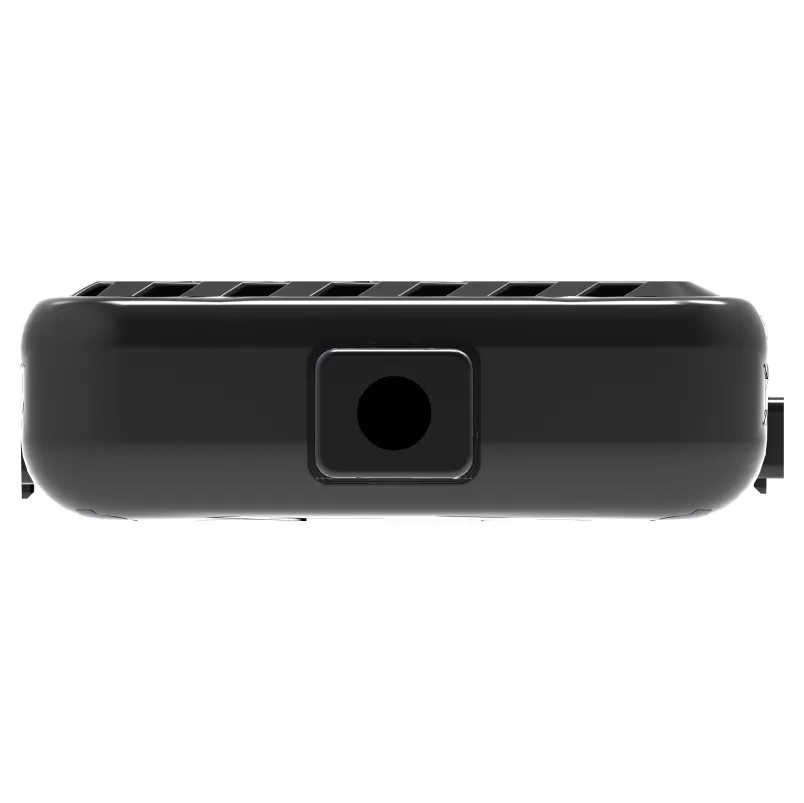

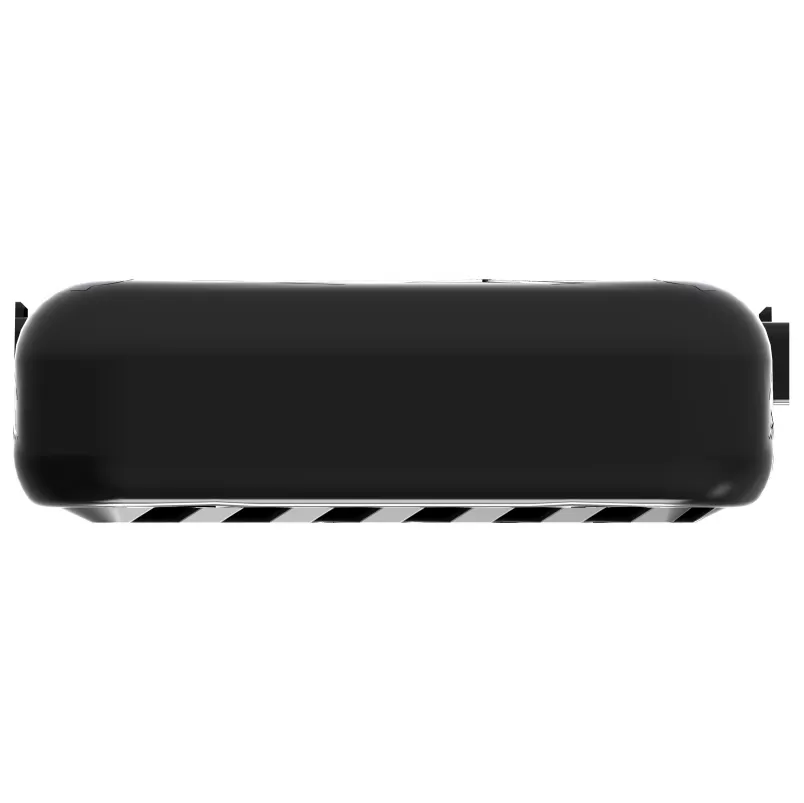

HB-A5D is a waterproof and dustproof GPS tracker with a well-sealed USB interface cover and SIM card cover. With the indicators, the installation process is simplified and the users can quickly identify any issues or malfunctions. The device also boasts ignition detection and interfaces for external relays and sensors, expanding its functionality and allowing for the integration of additional features or systems.
HB-A5D 4G is a waterproof electronic device designed for GPS positioning data transmission. lt supports 2G and 4G networks, working with the SIM card to ensure reliable and efficient data transmission. When the device enters standby mode or when the vehicle’s battery voltage is low, it will use its backup battery. Additionally, it can connect with external relays to cut off the vehicle’s fuel supply and boasts an interface for connecting sensors, allowing for the collection of additional vehicle-related information.
|
Function |
Parameter |
Note |
|
|
Communication |
2G |
900MHz,1800MH |
Large quantities of orders can be changed. |
|
4G |
LTE TDD：B34/B38/B39/B40/B41 |
||
|
GNSS |
Mode | GPS/BDS |
|
|
Sensitivity |
-148dBm/-162dBm | Acquisition/Tracking Sensitivity | |
|
Weight |
65g |
||
| Dimension | 85*50*16mm | ||
| Ingress Protection Ratings | IP65 | ||
| Backup Battery | 80mAh | ||
| Standby time | 30min | 10 min/ data | |
| Antennas | Built-in Antennas | GNSS&Communication Antennas | |
This device has 2 interfaces for additional accessories. One is for connecting with the relay to cut off the vehicle’s fuel supply, and the other one is for integrating with a fuel level sensor or temperature sensor.
‘Asset tracking’ is the means of monitoring the location and status of equipment and tools essential for business operations.’
Yes, we provide both Web and mobile phone APP.
We provide different speed-limiting solutions for different vehicles and models. Please contact us to confirm the corresponding solutions.
The device can read the vehicle’s speed through the pulse speed line, and identify the vehicle’s speed accurately. Then it will control the speed through a relay or pedal controller to prevent the speed from exceeding the threshold.
