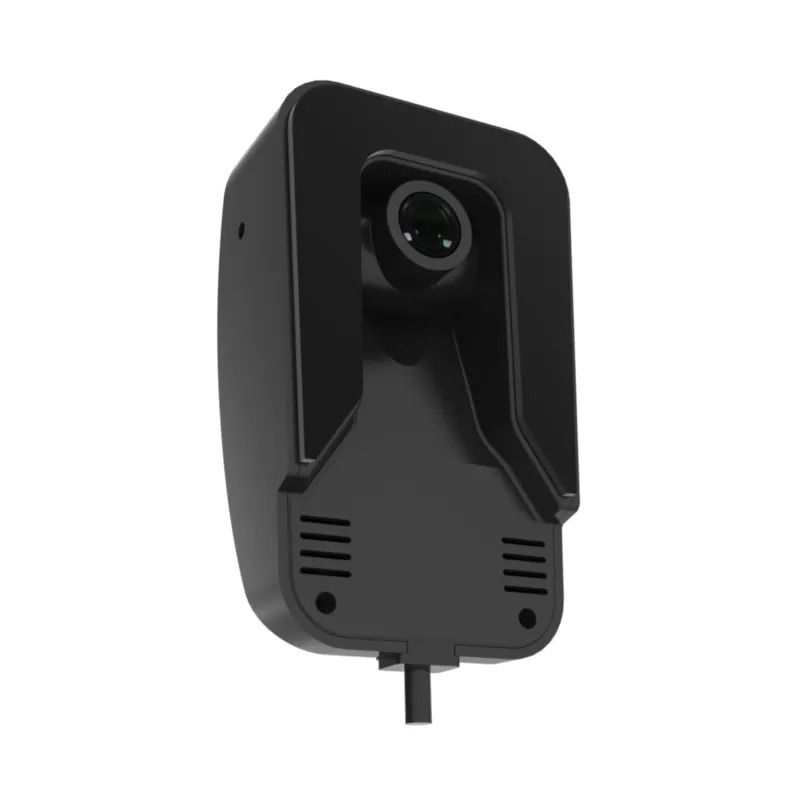

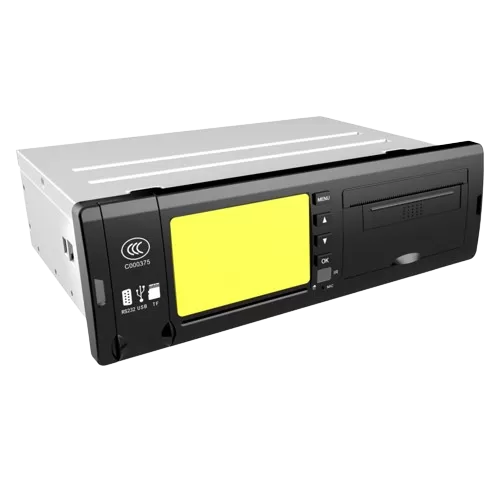

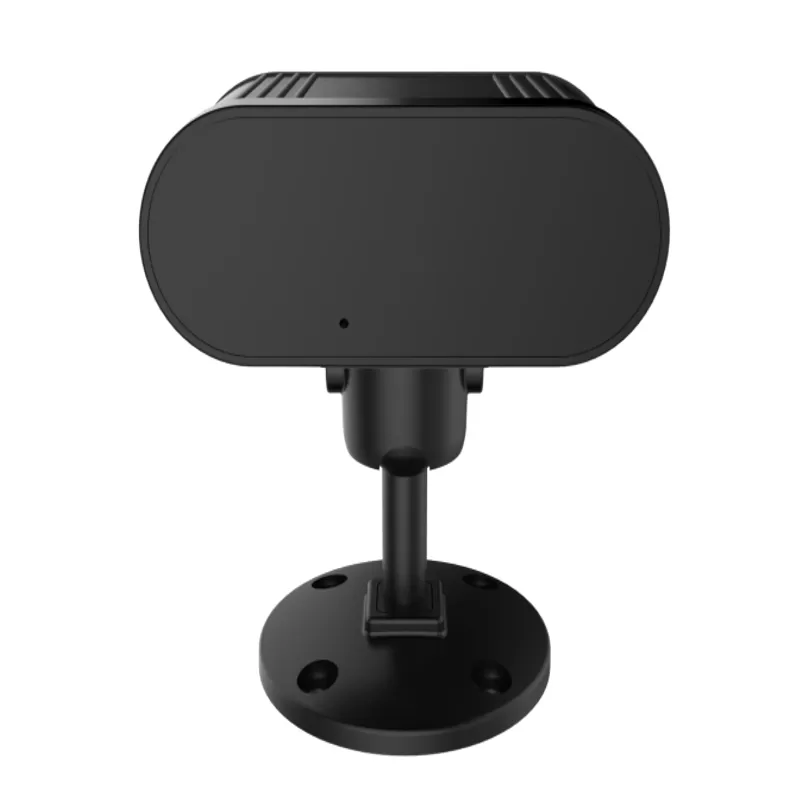

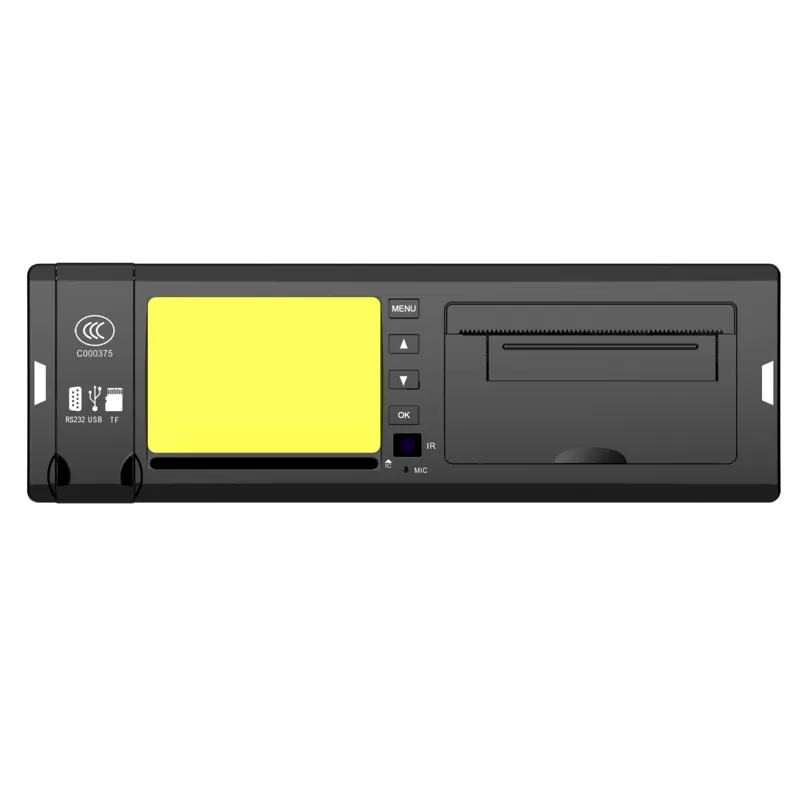

HB-DV05L is a 4-chanel MDVR with built-in Al algorithms. With the advanced driver assistance systems(ADAS) algorithm and the driver monitoring system(DMS) algorithm, HB-Dvo5L can realize the active safety functions along with the ADAs & Dis cameras. in addition, it can work with the BSD cameras, which is a complete vehicle monitoring solution, suitable for various commercial vehicles.
HB-DV05L is an MDVR with a 4G communication module. It is a combination of the tracker, the video recorder, the digital tachometer, and the safe driving system (ADAS/DMS/BSD), which can be equipped with up to 4 cameras (up to AHD 1080P) and adopts H.264 video compression technology. Furthermore, we have a professional solution to record video and travel data, supporting up to 2TB of SSD hard drives. It can be the factory default of commercial vehicles.
|
Articles |
Parameter |
Note |
|
|
System |
Operating System |
Linux |
|
|
Interface |
OSD Menu |
|
|
|
Language |
English/Chinese |
Customization |
|
|
Positioning |
GNSS | GPS/BDS |
|
|
Storage |
Videos And Audio |
SSD Hard Drive: Max. 2TB, M.2 Port, SATA
SD Card: 1 SD Card, Max. 256GB, Class 10 |
|
|
Playback |
Local (Through display) or PC software (Web/Software/APP) |
|
|
|
Communication |
Network |
2G,3G,4G |
|
|
Video |
Input |
4 Channels of AHD 1080P |
|
|
Output |
1 Channel: 1.0 VP-P ,75Ω |
||
|
Standard |
PAL/NTSC |
||
|
Compression Format |
H. 264 |
|
|
|
Resolution |
CIF / D1 / 960H / 720P / 1080P |
|
|
|
Audio |
Input |
4 CH |
|
| Output |
1 CH |
Audio& Video mixed data |
|

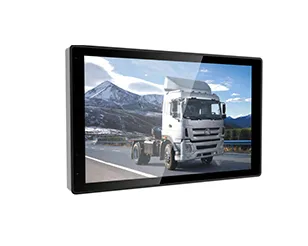

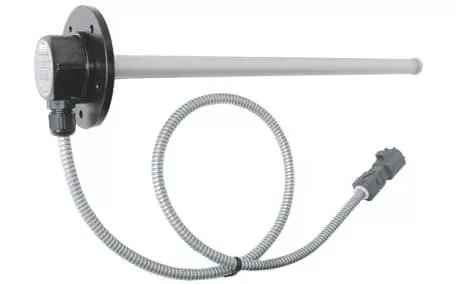

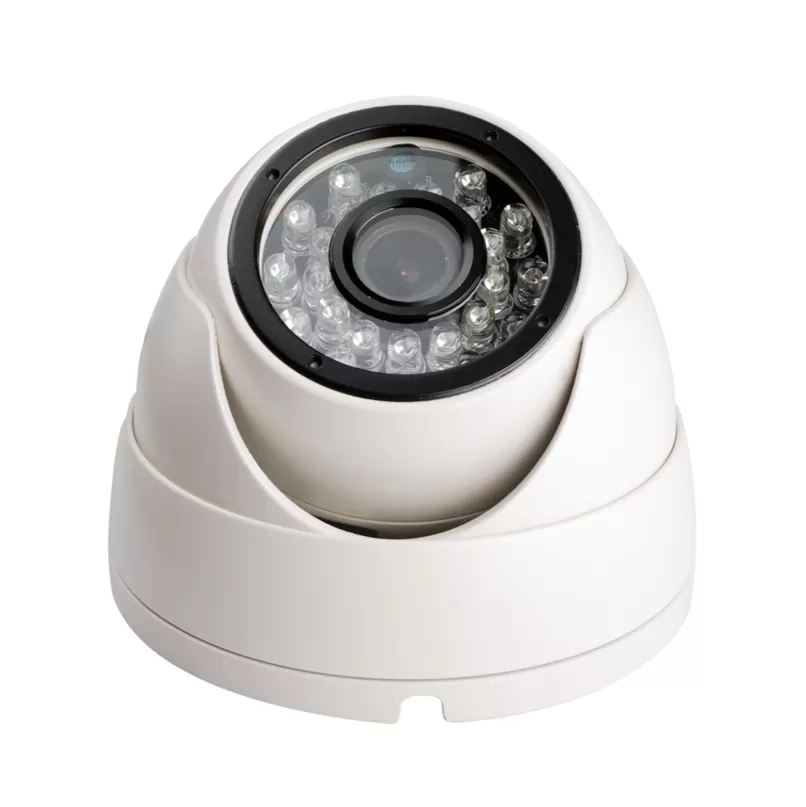

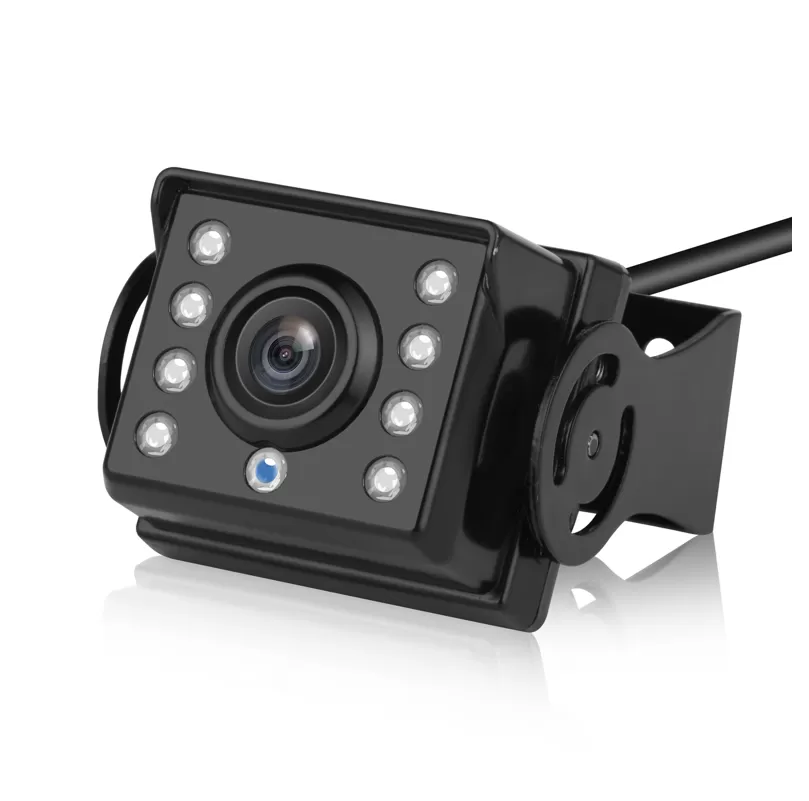

We provide accessories for MDVR including displays, AI or regular cameras, and remote control. Our MDVR also supports microphones, panic buttons, breathalyzers, and accessories for fuel level monitoring based on different projects.
Hi-tech equipment for asset management and logistics transportation
Solutions to record driving events and provide active safety services.
The best choice for vehicle tracking and fleet management.
Truck, Fire Engine, Bus, School Bus, Taxi, Semi-Trailer, Box Truck, RV, etc.
Forward Collision Warning (FCW), Urban Forward Collision Warning (UFCW), Headway Monitoring Warning (HMW), Pedestrian Collision Warning (PCW), and Lane Departure Warning (LDW).
Yawning, Eye Close, Distraction, Smoking, Phone Call. When the device detects improper driving behaviors of the driver, it will remind the driver and report it to the platform.
The devices should be kept away from water and not suspended. Under the premise of correctly installing the equipment, data is safe. The storage temperature is between -40 ℃ and 85 ℃. In addition, even if the device suddenly loses power, the stored data will not be lost on the device for 10 years.

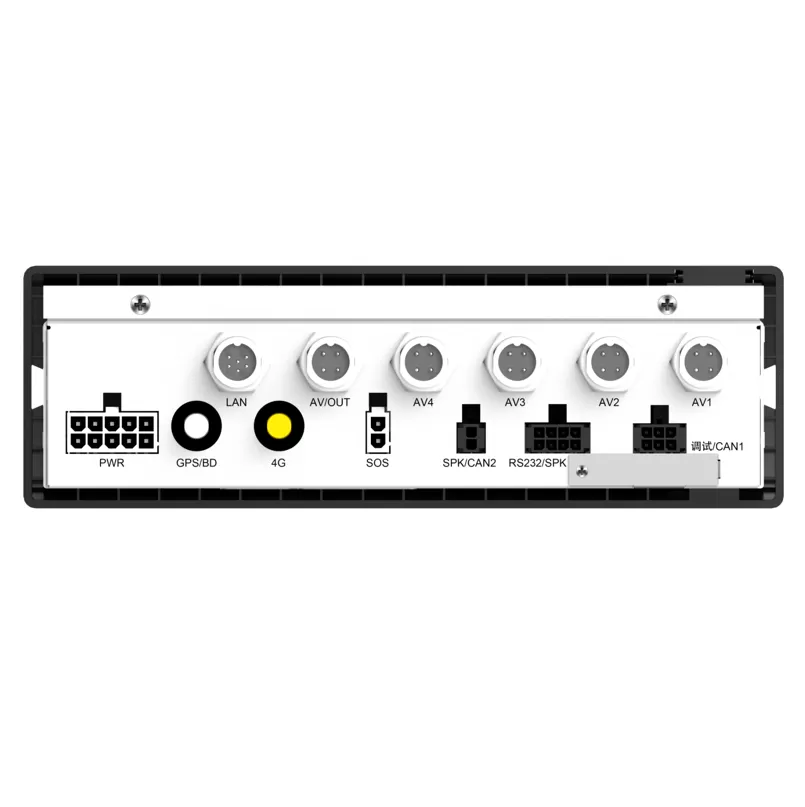

MDVR is designed to monitor and manage vehicles. It needs to adapt to the unstable voltage on the vehicle, have good vibration resistance, and be water and dust-proof. In addition, the MDVR has GPS positioning, and multiple I/O interfaces, and can support vehicle ignition detection…
